ISO 5223 Test Sieves

ISO 5223 Grain Sieves Made in Germany

Laboratory Test Sieves according to European Standard ISO 5223. Worldwide Delivery.

GRAIN TEST SIEVES MADE IN GERMANY

The Blau-Metall product portfolio builds on 30 years of experience in the manufacture of laboratory test sieves in accordance with various national and international standards. Since 1994, test sieves for cereals have been the core of our product range in support of European grain trace and government intervention. With the opening of our ISO 5223 eStore, we can now offer our grain sieve product range to customers around the world with convenient payment options, rapid shipping and tailored product options for all grain sieving tasks. Please do not hesitate to contact us directly with any questions, custom quotation requests or inquiries on non-standard sieves.

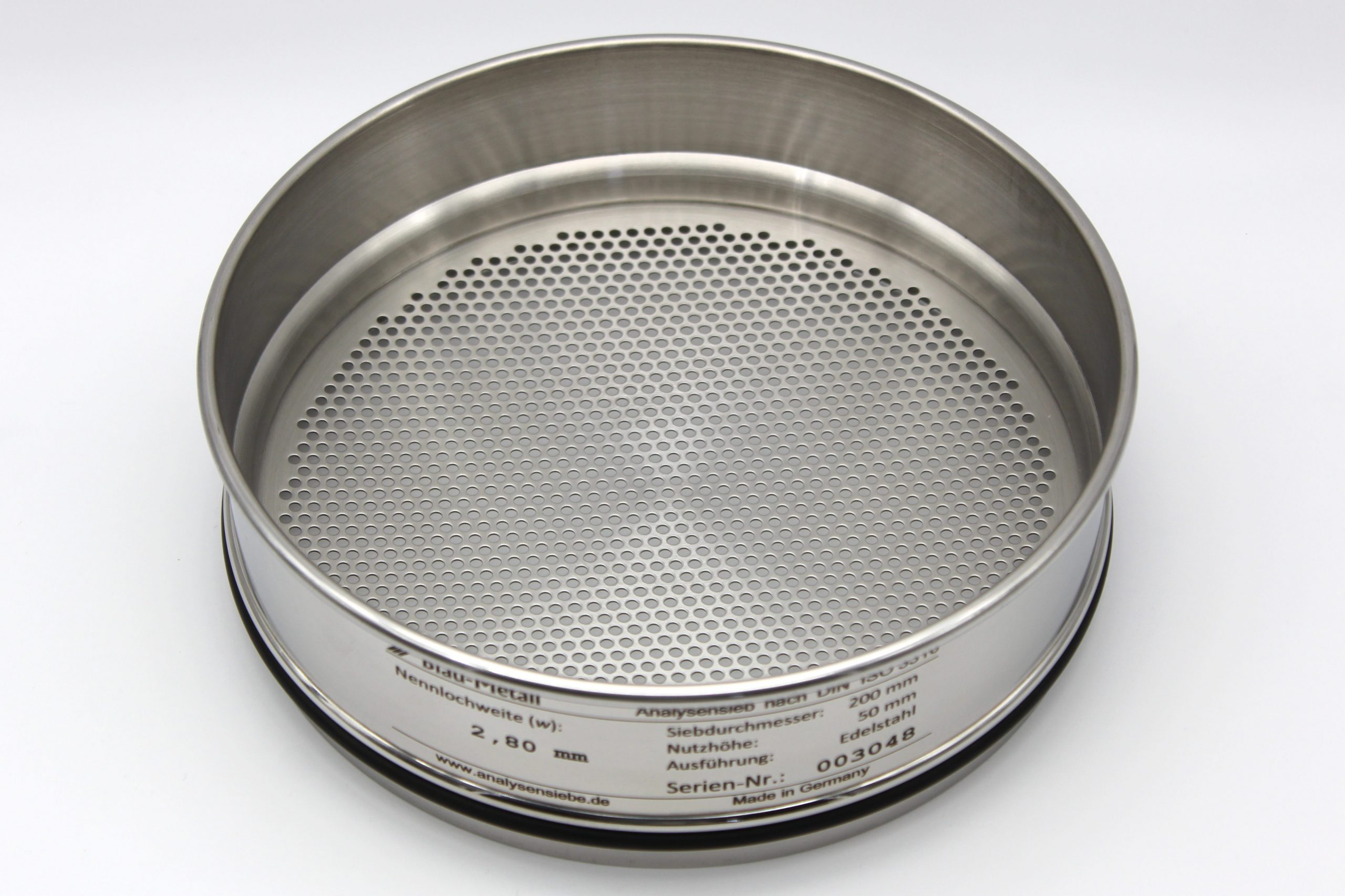

Blau-Metall Test Sieves

Blau-Metall manufactures test sieves for conventional particle analysis, cereal classification and custom sieving solutions. Our all-stainless-steel test sieves according to ISO 5223 have been in use across Europe for thirty years. Constant improvements in sieve design, aperture precision and quality control ensure our sieves meet the highest standards and stand out for their exceptional quality. We support sustainability by offering economical re-certification options for our sieves.

Upper Safety Edge Stackable with Ease 3D Laser Label Full Traceability Precision Apertures Fully Sealed Design All Stainless Steel

Upper Safety Edge

No sharp edges for easy handling and sieving by hand as part of on-site sampling. The rounded edge also helps seal the gap between multiple sieves in a stack and prevents any unwanted material from accumulating. The use of NBR gaskets on the outside of the sieves allows cleaning & drying at +80 °C without the need of removing the O-Ring.

Stackable with Ease

Lower edge designed for effortless stacking: Our test sieves are easily compatible with 200 mm sieves of all major test sieve brands and can be easily used in a stack of sieves. Blau-Metall sieves and sieve accessories are also compatible with sieve shakers of all the major manufacturers.

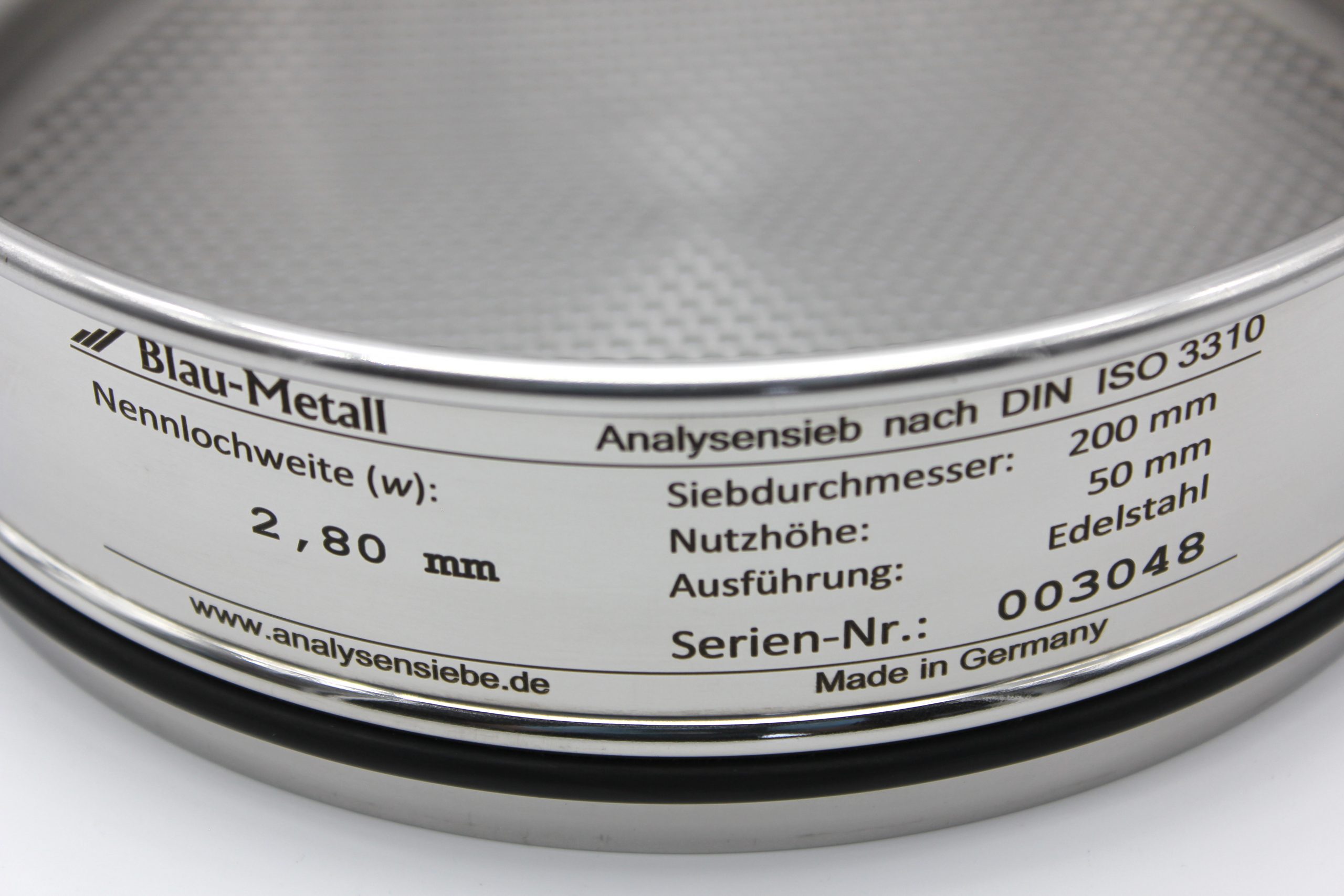

3D Laser Label

  • 3D Laser Engraving
  • Long-lasting identification
  • Tamper-proof through 3D structure
  • Font sized for easy reading of sieve size and serial number
  • Easily readable in various lighting conditions
  • No rivets or gaps for easy handling & cleaning

Full Traceability

Unique, tamper-proof serial number for every sieve allows for full traceability from the initial production through regular inspections as required by numerous national grain intervention boards.

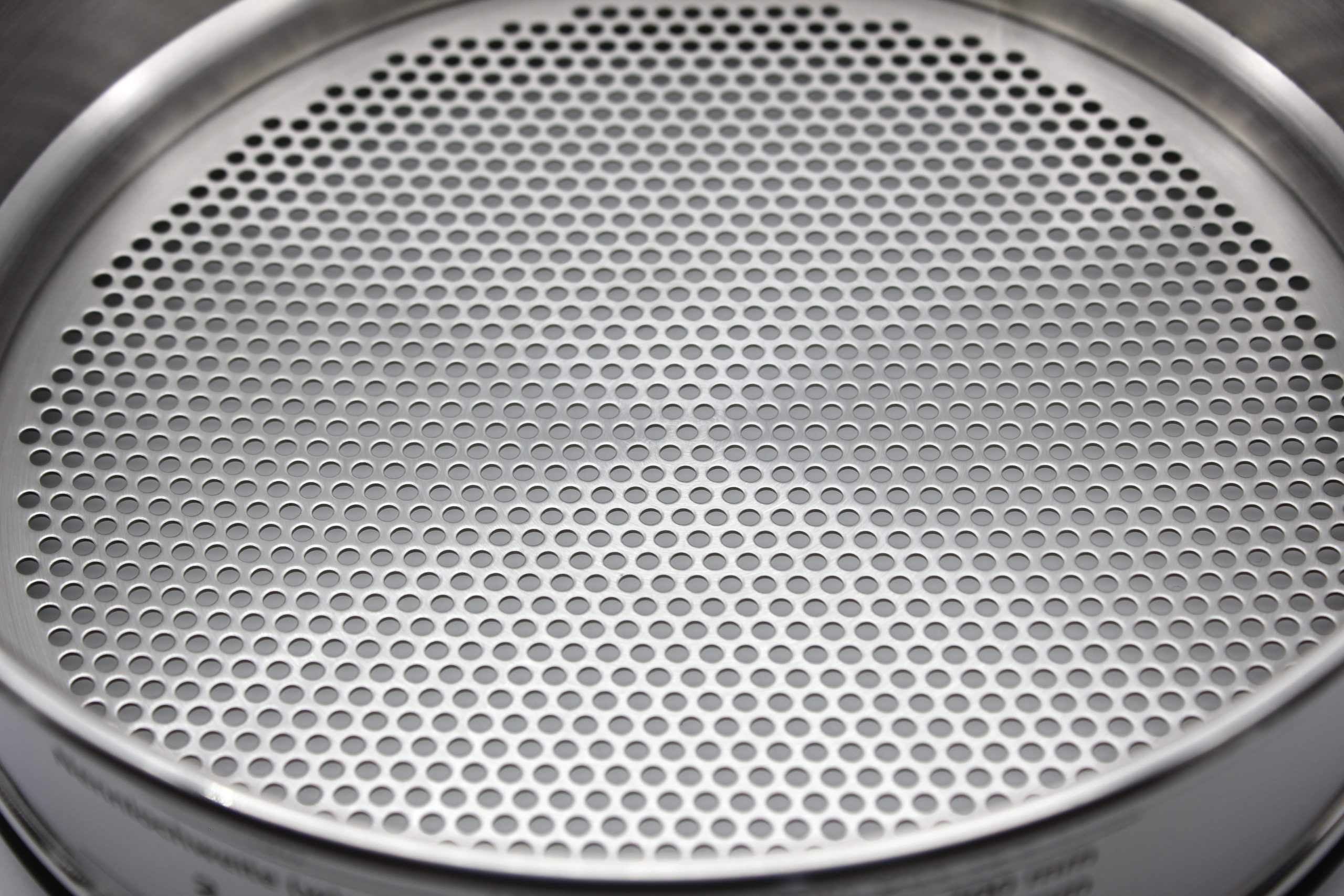

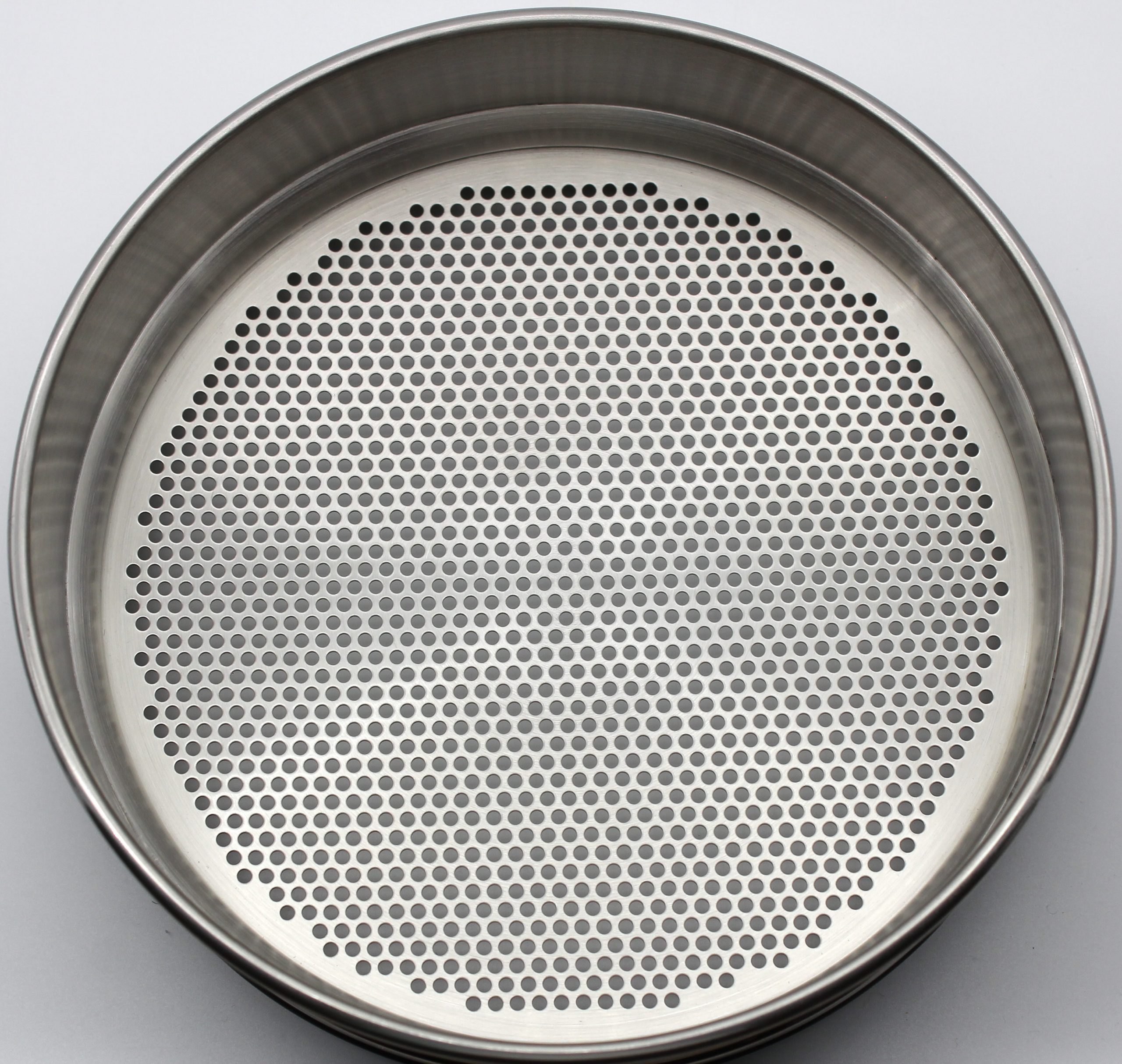

Precision Apertures

  • Stainless Steel (AISI 304) perforated plate
  • High-precision apertures according to ISO 5223 / ISO 3310-2
  • Long lifetime with high reliability for all sieving tasks
  • Rigorous optical inspection insures compliance of every single sieve
  • Custom perforations available on request

Fully Sealed Design

Each sieve has a dual solder joint to form a highly durable and complete seal between the internal surfaces of the sieve and provide additional reinforcement.

  • Fully sealed to avoid cross contamination
  • Smooth surface for easy cleaning & quick drying
  • Temperature-resistant up to 160 °C
  • Corrosion-resistant – no degradation with acidic or caustic cleaners

All Stainless Steel

All sieve components are made from AISI 304 stainless steel to create a highly durable, long-lasting sieve that will maintain its dimensional stability over an extended lifetime of many years.

Sustainability through re-certification instead of re-purchase on an annual basis is a cornerstone of our philosophy.

Made in Germany

We only use the highest quality materials for our sieves. Every single component not made in-house is procured from German manufacturers with whom we have long-standing relationships.

High Precision

Our perforated plate sieves stand out for their precise apertures, compliant with ISO 5223 / ISO 3310. Each sieve is delivered with a full Inspection Certificate after rigorous optical testing.

Worldwide Shipping

The ISO 5223 eStore offers quick and affordable shipping to all corners of the globe via tracked DHL parcel. Express air-freight shipping options are available on request in case of urgent requirements.

Speeded Work

We keep an ample supply of grain sieves ready to ship at all times for quick delivery times. Our storage-keeping also allows us to realize large shipments with speedy turnarounds.

BLAU-METALL GRAIN SIEVES

A core product of the Blau-Metall product range are represented by grain sieves manufactured and certified according to EN ISO 5223 for classification of grains / cereal in compliance with national and international regulations of Government Intervention Boards. Blau-Metall has specialized in the area of grain sieves for over 25 years and strides to deliver highly precise test sieves with slotted apertures suitable for grain analysis of all types. Combined with chosen round aperture sieves & suitable accessories, we deliver a complete solution for hand-sieving of grain samples on-site as well as laboratory analysis of grain fractions for detailed classification.

In addition to years of experience, Blau-Metall employs state of the art inspection technology to carry out optical measurements on every sieve we deliver – guaranteeing precise compliance with the standard and enabling highly precise sieving analysis.

Sieve Diameter: 200 mm
Sieve Depth H1: 32 or 50 mm
Sieve Design: Stainless Steel (Frame, Perforated Plate, Tensioning Ring)
Standard: EN ISO 5223
Slotted Oblong Aperture Sieves: 1,00 to 3,55 mm
Round Round Aperture Sieves: 1,40, 1,80 and 4,50 mm

ISO 5223 eStore

Blau-Metall offers test sieves for cereals according to EN ISO 5223 which are suitable for the determination of Besatz / impurities via the methodology outlined by EN 15587. Our portfolio also includes non-standard oblong sieves for specialized sieving needs. Custom-made oblong sieves are available up to a slot width of 16 mm.

Test Sieves with round apertures are used for classifying broken kernels in cereal samples, classification of seeds and sorting of other agricultural samples. They also have a wider application in traditional particle analysis. Blau-Metall offers test sieves according to ISO 3310, ISO 5223 and non-standard round hole sieves starting from 0.5 mm.

Many standards call for the use of suitable test sieve accessories: collecting pans of appropriate size to catch the finest particle fraction, sieve lids to prevent material from escaping and intermediate rings for large sample volumes. Blau-Metall sieves and accessories are suited for manual sieving by hand as well as automatic sieving with a shaker.

PRECISION IS KEY

Test Sieves for cereals with oblong apertures are among those with the most stringent tolerances, requiring precision at every step of the manufacturing process to ensure the sieve arrives in the middle of the narrow tolerance band required by ISO 5223.

Blau-Metall employs state of the art Image Dimension Measurement Technology to inspect each and every single sieve prior to delivery with a calibrated accuracy of ± 0.002 mm. For customers of our ISO 5223 eStore, we make the complete Inspection Certificate 3.1 (EN 10204) available for every purchased sieve at no additional cost – bolstering full confidence in reliable sieving results with the proper statistical significance.

In times of economic challenges, supply chain issues and limited availability of raw materials, Blau-Metall offers cost-effective re-certification services for all types of ISO 3310 / 5223 grain sieves. Re-certifying test sieves comes at a fraction of the cost of procuring new sieves, reduces environmental strain and eliminates potentially long delivery times for new sieves due to uncertainties in the raw material marketplace.

TEST SIEVES • ISO 5223

DIAMETER APERTURE TYPE APERTURE SIZE APPLICATION PRODUCT DETAILS
200 mm Oblong 1.00 x 20.0 mm Fines, Besatz Product Details
200 mm Oblong 1.50 x 20.0 mm Rice Product Details
200 mm Oblong 1.60 x 20.0 mm Rice Product Details
200 mm Oblong 1.70 x 20.0 mm Rye, Wheat Product Details
200 mm Oblong 1.80 x 20.0 mm Rye, Oats Product Details
200 mm Oblong 1.90 x 20.0 mm Durum Wheat, Triticale Product Details
200 mm Oblong 2.00 x 20.0 mm Common Wheat Product Details
200 mm Oblong 2.20 x 20.0 mm Feed Barley, Malting Barley Product Details
200 mm Oblong 2.50 x 20.0 mm Malting Barley Product Details
200 mm Oblong 2.80 x 20.0 mm Malting Barley Product Details
200 mm Oblong 3.50 x 20.0 mm Seeds Product Details
200 mm Oblong 3.55 x 20.0 mm Besatz Product Details
200 mm Round 1.40 mm Besatz Product Details
200 mm Round 1.80 mm Sorghum, Flax Product Details
200 mm Round 4.50 mm Corn / Maize Product Details


Test Sieve Sets

Set of 3 Test Sieves for Malting Barley

Set of 3 Test Sieves for Rice

OTHER SIEVING SOLUTIONS

Blau-Metall is a global supplier of laboratory test sieves.

In addition to our ISO 5223 and grain sieve portfolio, we offer various test sieves for conventional particle analysis in industry and science as well as specialized sieves customized according to your requirements. Our services include:

  • Woven Wire Cloth Test Sieves according to ISO 3310-1 or ASTM E 11
  • Perforated Plate Test Sieves according to ISO 3310-2, ISO 5223, ASTM E 323, DIN 24041
  • Cost-effective hand sieves according to ISO 9044 for use in industry, small business & hobby
  • A large range of non-standard sieves, manufactured to strict tolerances
  • Certification and Re-Certification Services for wire cloth and perforated plate sieves
  • Made-to-Spec sieves based on customer requirements
Planning a Large Project? Need Express Shipping? Require Customized Solutions?
